Using Webhooks Instead of Polling

By default, Fleet utilizes polling (default: every 15 seconds) to pull from a Git repo. This is a convenient default that works reasonably well for a small number of repos (up to a few tens).

For installations with multiple tens up to hundreds of Git repos, and in general to reduce latency (the time between a push to Git and fleet reacting to it), configuring webhooks is recommended instead of polling.

Fleet currently supports Github, GitLab, Bitbucket, Bitbucket Server and Gogs.

1. Configure the webhook service. Fleet uses a gitjob service to handle webhook requests. Create an ingress that points to the gitjob service.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: webhook-ingress
  namespace: cattle-fleet-system
spec:
  rules:
  - host: your.domain.com
    http:
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: gitjob
              port:
                number: 80

Ingress Nginx will be retired, here is an example using Traefik:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    traefik.ingress.kubernetes.io/router.middlewares: cattle-fleet-system-gitjob-stripprefix@kubernetescrd
    traefik.ingress.kubernetes.io/router.priority: '100'
  name: webhook-ingress
  namespace: cattle-fleet-system
spec:
  ingressClassName: traefik
  rules:
    - host: your.domain.com
      http:
        paths:
          - backend:
              service:
                name: gitjob
                port:
                  number: 80
            path: /gitjob(/|$)(.*)
            pathType: ImplementationSpecific

Use the annotation traefik.ingress.kubernetes.io/router.priority: '100' only when two Ingress resources can conflict. This annotation assigns a higher priority to the GitJob route. This depends on the pathType property. When pathType is set to Prefix, the annotation is required.

This configuration requires a middleware to strip the additional path from the URL, since gitjob responds directly from the root path. This is equivalent to the nginx.ingress.kubernetes.io/rewrite-target annotation in Nginx:

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: gitjob-stripprefix
  namespace: cattle-fleet-system
spec:
  stripPrefix:
    prefixes:
      - /gitjob

This approach allows a smooth migration from Ingress Nginx to Traefik while keeping the application configuration unchanged.

You can configure TLS on ingress.

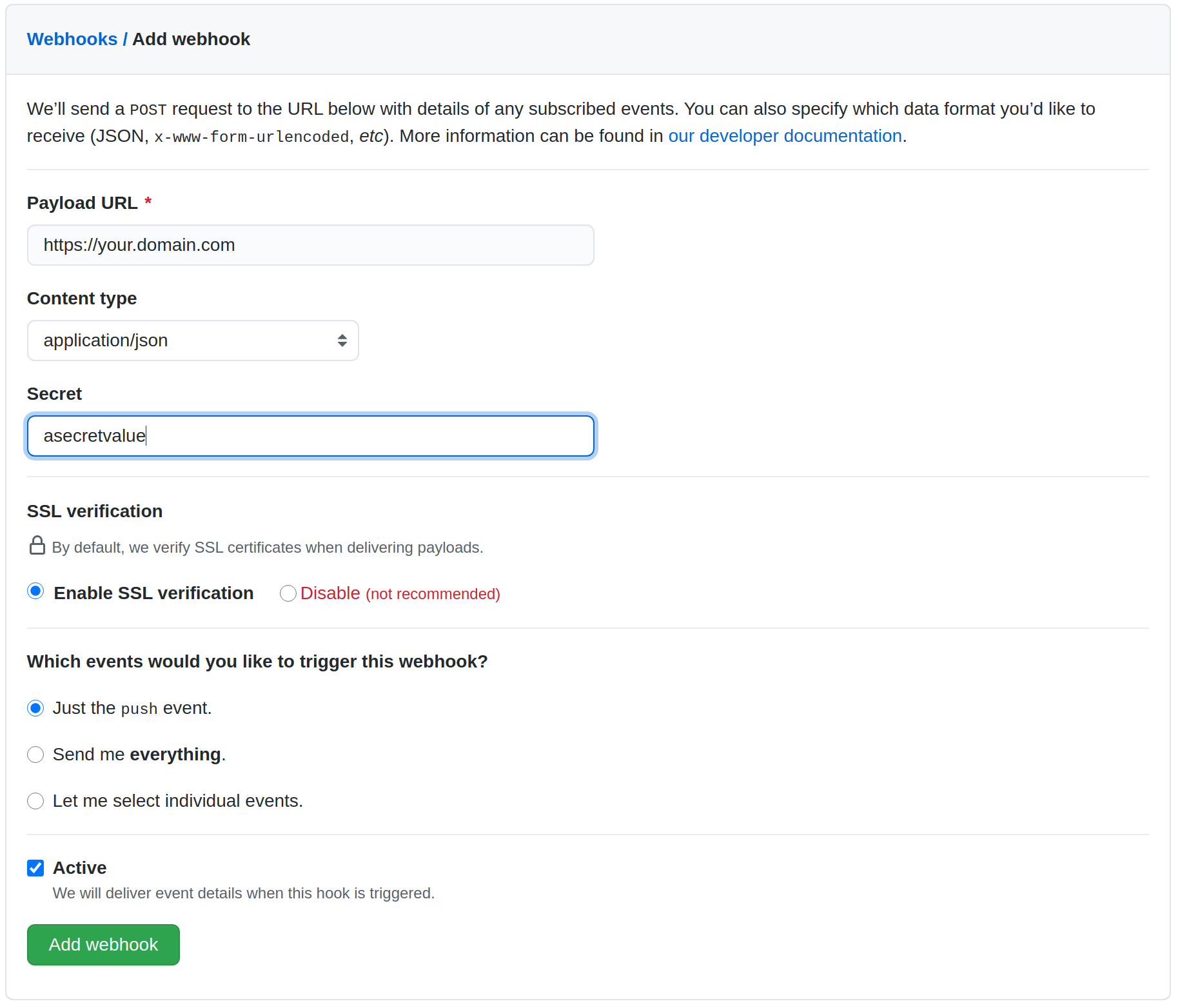

2. Go to your webhook provider and configure the webhook callback url. Here is a Github example.

webhook

Configuring a secret is optional. This is used to validate the webhook payload as the payload should not be trusted by default. If your webhook server is publicly accessible to the Internet, then it is recommended to configure the secret. If you do configure the secret, follow step 3.

only application/json is supported due to the limitation of webhook library.

If you configured the webhook the polling interval will be automatically adjusted to 1 hour.

3. (Optional) Configure webhook secret. The secret is for validating webhook payload. Make sure to put it in a k8s secret called gitjob-webhook in cattle-fleet-system.

Provider K8s Secret Key

GitHub

github

GitLab

gitlab

BitBucket

bitbucket

BitBucketServer

bitbucket-server

Gogs

gogs

For example, to create a secret containing a GitHub secret to validate the webhook payload, run:

kubectl create secret generic gitjob-webhook -n cattle-fleet-system --from-literal=github=webhooksecretvalue

4. Go to your git provider and test the connection. You should get a HTTP response code.
