Rollout Strategy

Fleet uses a rollout strategy to control how apps are deployed across clusters. You can define the order and grouping of cluster deployments using partitions, enabling controlled rollouts and safer updates.

Fleet evaluates the Ready status of each BundleDeployment to determine when to proceed to the next partition. For more information, refer to Status Fields.

During a rollout, the GitRepo status indicates deployment progress. This helps you understand when bundles become Ready before continuing:

• For initial deployments:
  • One or more clusters may be in a NotReady state.
  • Remaining clusters are marked as Pending, meaning deployment has not started.
• For rollouts:
  • One or more cluster may be in a NotReady state.
  • Remaining clusters are marked OutOfSync until the deployment continues.

The rollout configuration options are documented in the rolloutStrategy field of the fleet.yaml reference.

note

If rolloutStrategy is not specified in fleet.yaml, Fleet uses the default values.

How Does Partitioning Work?

Partitions are solely used for grouping and controlling the rollout of BundleDeployments across clusters. They do not affect deployment options in any way.

If targeted clusters are not part of the manual partitioning, they will not be included in the rollout. If a cluster is part of a partition, it will receive a BundleDeployment when the partition is processed.

Partitions are considered NotReady if they have clusters that exceed the allowed number of NotReady clusters. If a cluster is offline, the targeted cluster will not be considered Ready and will stay in the NotReady state until it comes back online and successfully deploys the BundleDeployment.

The threshold is determined by:

• Manual partitions: Use maxUnavailable value inside each partition to control readiness for that partition, otherwise, if unspecified, it uses rolloutStrategy.maxUnavailable.
• Automatic partitions: Use rolloutStrategy.maxUnavailable value to control when a partition is ready.

Fleet proceeds only if the number of NotReady partitions remains below maxUnavailablePartitions.

note

Fleet rolls out deployments in batches of up to 50 clusters per partition, regardless of partitions having more clusters assigned. After each batch, Fleet checks the maxUnavailable threshold before continuing. After all deployments for a partition have been created, maxUnavailable is also evaluated. For example:

• If a partition has 25 clusters and maxUnavailable is 5, Fleet deploys to all 25 before checking maxUnavailable.
• If a partition has 100 clusters, Fleet deploys to the first 50, checks maxUnavailable, and proceeds with the remaining 50 only if the threshold is not exceeded.

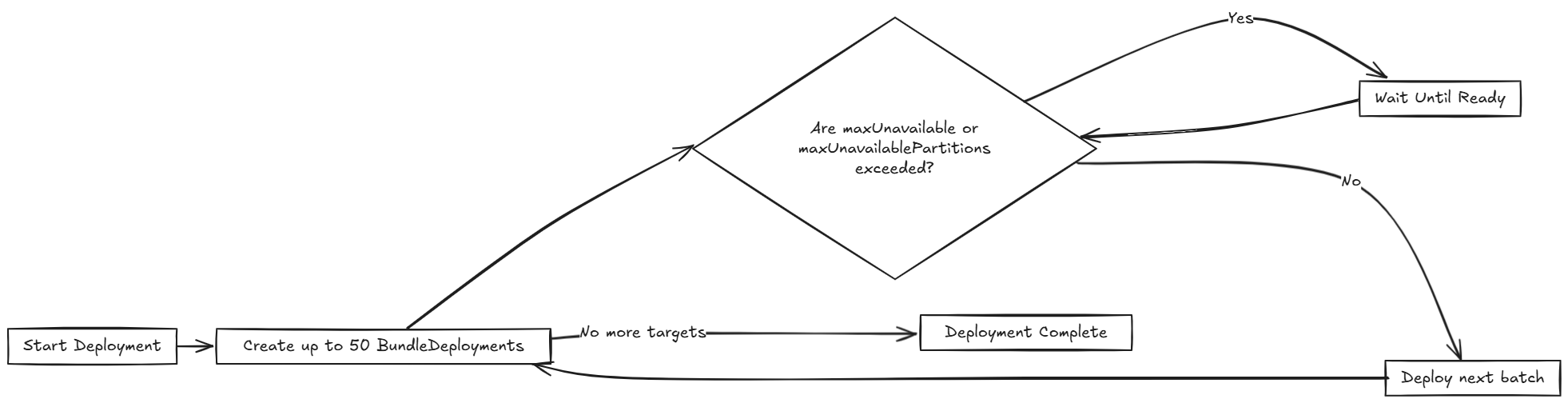

The following diagram displays how Fleet handles rollout:

Various limits that can be configured in Fleet:

Field	Description	Default
maxUnavailable	Maximum number or percentage of clusters that can be NotReady before halting rollout.	100%
maxUnavailablePartitions	Number or percentage of partitions that can be NotReady at once.	0
autoPartitionSize	Number or percentage of clusters per auto-created partition.	25%
partitions	Define manual partitions by cluster labels or group. If set, autoPartitionSize is ignored.	–

Fleet supports automatic and manual partitioning. For more information about configuration options, refer to the rolloutStrategy option in the fleet.yaml reference.

Automatic Partitioning: Fleet automatically creates partitions using autoPartitionSize.

For example, you have 200 clusters and set autoPartitionSize to 25%, Fleet creates four partitions of 50 clusters each. Rollout proceeds in 50-cluster batches, checking maxUnavailable before continuing.

Manual Partitioning: You define specific partitions using the partitions option. This provides control over cluster selection and rollout order.

note

If you specify partitions manually, the autoPartitionSize is ignored.

For example, consider:

rolloutStrategy:
  partitions:
    - name: demoRollout
      maxUnavailable: 10%
      clusterSelector:
        matchLabels:
          env: staging
    - name: stable
      maxUnavailable: 5%
      clusterSelector:
        matchLabels:
          env: prod

Fleet then:

1. Selects clusters based on clusterSelector, clusterGroup, or clusterGroupSelector.

• Partitions can be specified by clusterName, clusterSelector, clusterGroup, and clusterGroupSelector.

2. Starts rollout to the first partition.
3. Waits until the partition is considered Ready (depending on the maxUnavailable threshold).
4. Proceeds to the next partition.

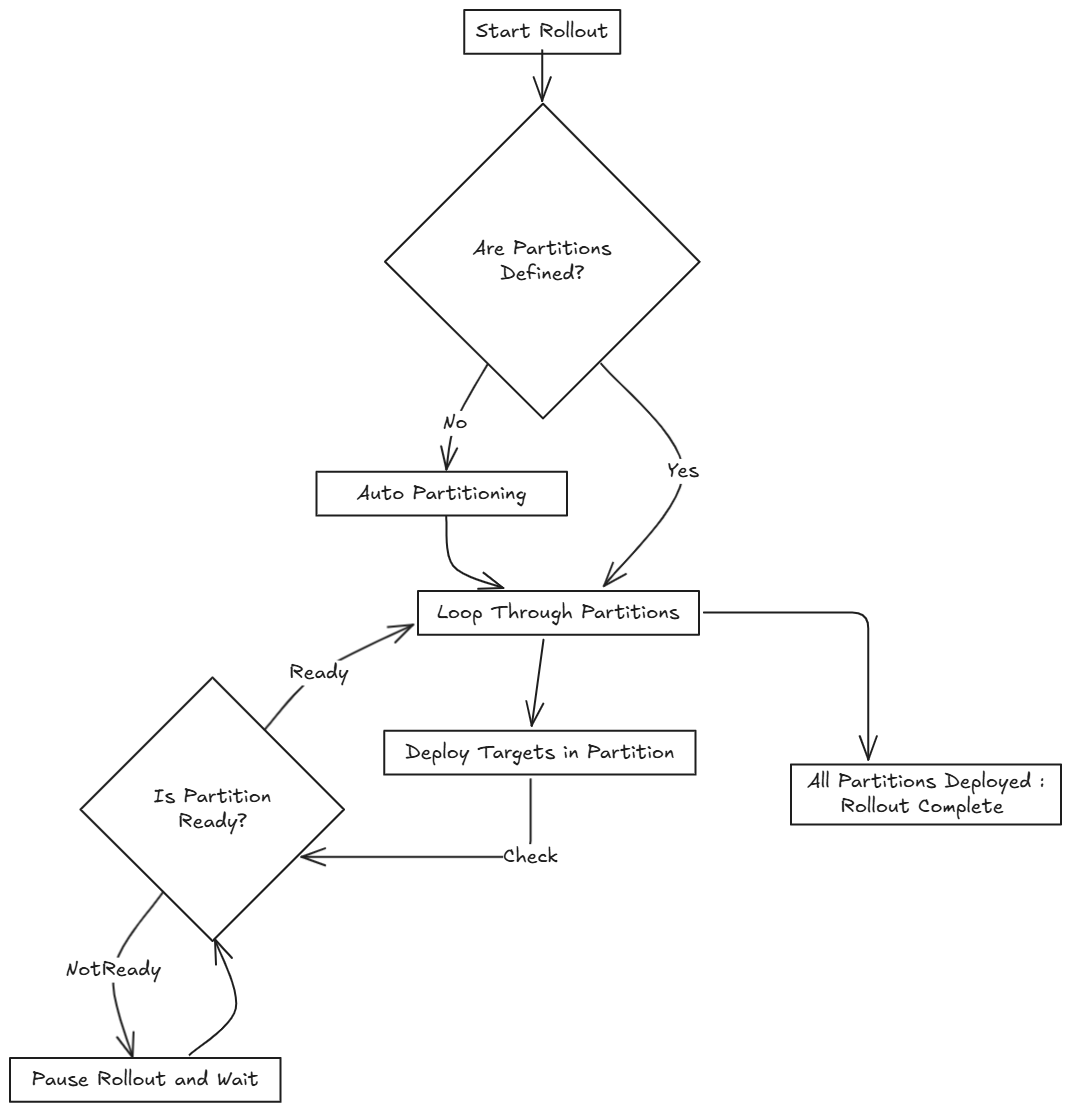

The following diagram illustrates how Fleet handles rollout across multiple partitions, including readiness checks and deployment flow:

note

MaxNew is always 50. A bundle change can only stage 50 BundleDeployments at a time.

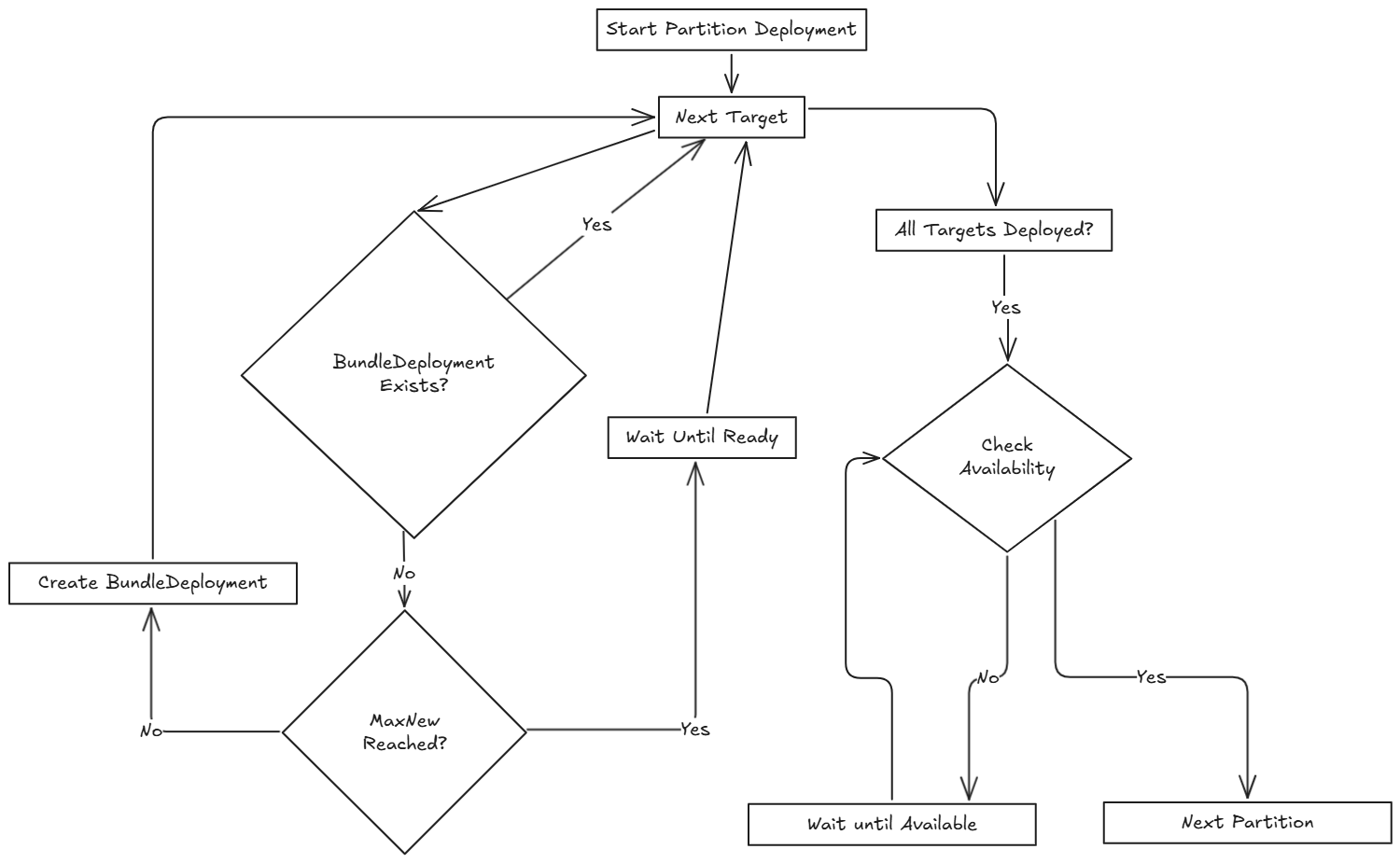

Within each partition, Fleet rolls out up to 50 BundleDeployments at a time. The diagram below shows how Fleet determines whether to proceed or wait during this process:

note

Fleet recommends labeling clusters so you can use those labels to assign clusters to specific partitions.

note

Fleet processes partitions in the order they appear in the fleet.yaml file.

Single Partition

If you don’t define rolloutStrategy.partitions, Fleet creates partitions automatically based on the number of targeted clusters:

• For fewer than 200 clusters, Fleet uses a single partition.
• For 200 or more clusters, Fleet uses the default autoPartitionSize value (25%) of the total.

For example, consider 200 clusters, Fleet uses the default autoPartitionSize of 25%. This means, Fleet creates 4 partitions (25% of 200 = 50 clusters per partition). Fleet processes up to 50 clusters at a time, which means it:

1. Rolls out to the first 50 clusters.
2. Evaluate readiness based on maxUnavailable.
3. If the condition is met, proceed to the next 50, and so on.

Multiple Partitions

If you define multiple partitions, Fleet uses maxUnavailablePartitions to limit how many partitions can be NotReady at once. If the number of NotReady partitions exceeds maxUnavailablePartitions, Fleet pauses the rollout.

Preventing image pull storms

During rollout, each downstream cluster pulls container images. If hundreds of clusters begin pulling images simultaneously, this can overwhelm the registry and behave like a DDoS attack.

To avoid this, Fleet can control how many clusters are updated at a time. You can use the following rollout configuration options to slow down and stage the rollout:

• autoPartitionSize
• partitions
• maxUnavailable

Fleet does not add artificial delays during rollout. Instead, it proceeds based on the readiness status of workloads in each cluster. Factors that affect readiness include image pull time, startup time, and readiness probes. Although using readiness probes is recommended, they are not strictly required to control rollout speed.

For example, you have 200 clusters, which are manually partitioned, each with 40 clusters and want to prevent an image pull storm:

• maxUnavailablePartitions: Set to 0.
• maxUnavailable: Set to 10%.

How rollout proceeds:

1. Fleet begins with the first partition (40 clusters).
2. It deploys up to 50 BundleDeployments at once. So it deploys to all 40 clusters in the partition in one batch.
3. Fleet checks the readiness of clusters in the partition.
4. If more than 4 clusters are not ready, then the partition is considered NotReady and the rollout is paused.
5. Once ≤4 clusters are NotReady, Fleet proceeds with the deployment.
6. When the entire partition is mostly ready (90%), Fleet moves to the next partition.

If you want or need to process fewer than 40 deployments at once, you can put fewer clusters into each partition.

Use Cases and Behavior

If the number of clusters doesn’t divide evenly, Fleet rounds down partition sizes. For example, 230 clusters with autoPartitionSize: 25% results in:

• Four partitions of 57 clusters
• One partition of 2 clusters

Scenario: 50 Clusters (Single Partition)

rolloutStrategy:
  maxUnavailable: 10%

• Fleet creates one partition containing all 50 clusters, since no partitions are defined.
  • No requirement to specify maxUnavailablePartitions, as only one partition is created.
• Although there is no specified manual partition and maxUnavailable is set to 10%, Fleet deploys to all 50 clusters at once (batch behavior overrides maxUnavailable initially).
• Evaluation occurs after all deployments are created.

The following diagram illustrates how Fleet handles 50 clusters in a single partition:

Scenario: 100 Clusters (Single Partition)

rolloutStrategy:
  maxUnavailable: 10%

• Fleet creates one partition containing all 100 clusters, since no partitions are defined.
  • No requirement to specify maxUnavailablePartitions, as you have only one.
• Although there is no specified manual partition and maxUnavailable is set to 10%, Fleet deploys to 50 clusters at once (batch behavior overrides maxUnavailable initially).

If 10 clusters (10% of 100 clusters) are unavailable, the deployment of the remaining 50 clusters is paused until less than 10 clusters are NotReady.

Scenario: 200 Clusters (Multiple Partitions)

rolloutStrategy:
  maxUnavailablePartitions: 1
  autoPartitionSize: 10%

• Fleet creates 10 partitions, each with 20 clusters.
• Deployment proceeds sequentially by partition.
• If two or more partitions become NotReady, rollout pauses.
• If one partition is NotReady, rollout can proceed to the next.

Fleet creates BundleDeployments for 20 clusters, waits for them to become Ready, then proceeds to the next. This effectively limits the amount of image pulls from downstream clusters to up to ~40 images at a time.

Scenario: 200 Clusters (Strict Readiness, Manual partitions)

Manual partitioning allows you control over cluster grouping with maxUnavailablePartitions: 0.

rolloutStrategy:
  maxUnavailable: 0
  maxUnavailablePartitions: 0
  partitions:
    - name: demoRollout
      clusterSelector:
        matchLabels:
          stage: demoRollout
    - name: stable
      clusterSelector:
        matchLabels:
          stage: stable

• You define manual partitions using clusterSelector and labels like stage: demoRollout and stage: stable.
• Fleet creates BundleDeployments for clusters in the first partition (for example, demoRollout).
• The rollout proceeds strictly in order, Fleet only moves to the next partition when the current one is considered ready.
• With maxUnavailable: 0 and maxUnavailablePartitions: 0, Fleet pauses the rollout if any partition is not considered ready.

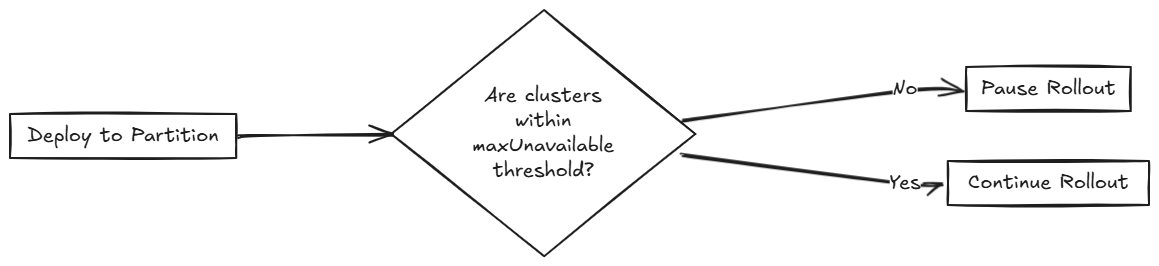

The following diagram describes how Fleet handles whether to continue or pause rollout.

This ensures full readiness and staged rollout across all 200 clusters. Use this approach when you need precise rollout sequencing and full cluster readiness before advancing.

Rollout Strategy Defaults

If partition-level rollout values are not defined, Fleet applies the global values from rolloutStrategy in fleet.yaml. Partition-specific settings override global values when explicitly set.

By default, Fleet sets:

• maxUnavailable to 100%: All clusters in a partition can be NotReady and still be considered Ready.
• maxUnavailablePartitions to 0: Prevents rollout only when one or more partitions are considered NotReady. However, this check is ineffective if all partitions appear Ready due to maxUnavailable: 100%.

For example, consider 200 clusters with default settings:

• Fleet creates 4 partitions of 50 clusters each (autoPartitionSize: 25%).
• Because maxUnavailable is 100%, each partition is treated as Ready immediately.
• Fleet proceeds through all partitions regardless of actual readiness.

Fleet recommends you to control rollouts by setting:

• Lower maxUnavailable, e.g. 10%.
• Set maxUnavailablePartitions to 0 or higher, if desired.

This ensures:

• Partitions meet readiness before rollout continues.
• Fleet pauses rollout if too many partitions are not ready.
